Fast Running Damper Actuator
5Nm ON/OFF, 2-Point
For operation of air control dampers in HVAC system.
Torque: 5Nm
Nominal voltage: AC/DC24V, AC100...240V
Control: ON/OFF, 2-Point
-DST type include SAF72 thermal sensor
Type selection table
Torque | Running Time | Power Supply | Auxiliary Switch | SAF72 Thermal Sensor | Model/Type |
5Nm
| <70S/<20S
| 24VAC/DC
| 2-SPDT | None | SA5FU24-DS |
Yes | SA5FU24-DST |
Technical parameter
| SA5FU24-DS/DST | |
Electrical data | Nominal voltage | AC/DC 24V 50/60Hz |
Nominal voltage range | AC/DC 19.2...28.8V | |
Power consumption | 5W@Nominal toque/ 3W@holding | |
Wire sizing | 0.5mm2 | |
Function data | Torque | 5Nm |
Damper size | 1.0m2 | |
Direction of rotation | Selected by mounting L/R | |
Manual override | Yes | |
Angle of rotation | Max95° | |
Running time | <70S/<20S(Spring reset） | |
Sound power level | 45dB | |
Position indication | Mechanical | |
Working conditions | Protection class | Ⅲ (safety low voltage) |
Protection level | IP54 | |
Ambient temperature | -20...+50℃ /IEC 721-3-3 | |
Inventory temperature | -30...+80℃ /IEC 721-3-2 | |
Humidity test | 95%RH,non condensing(EN60730-1) | |

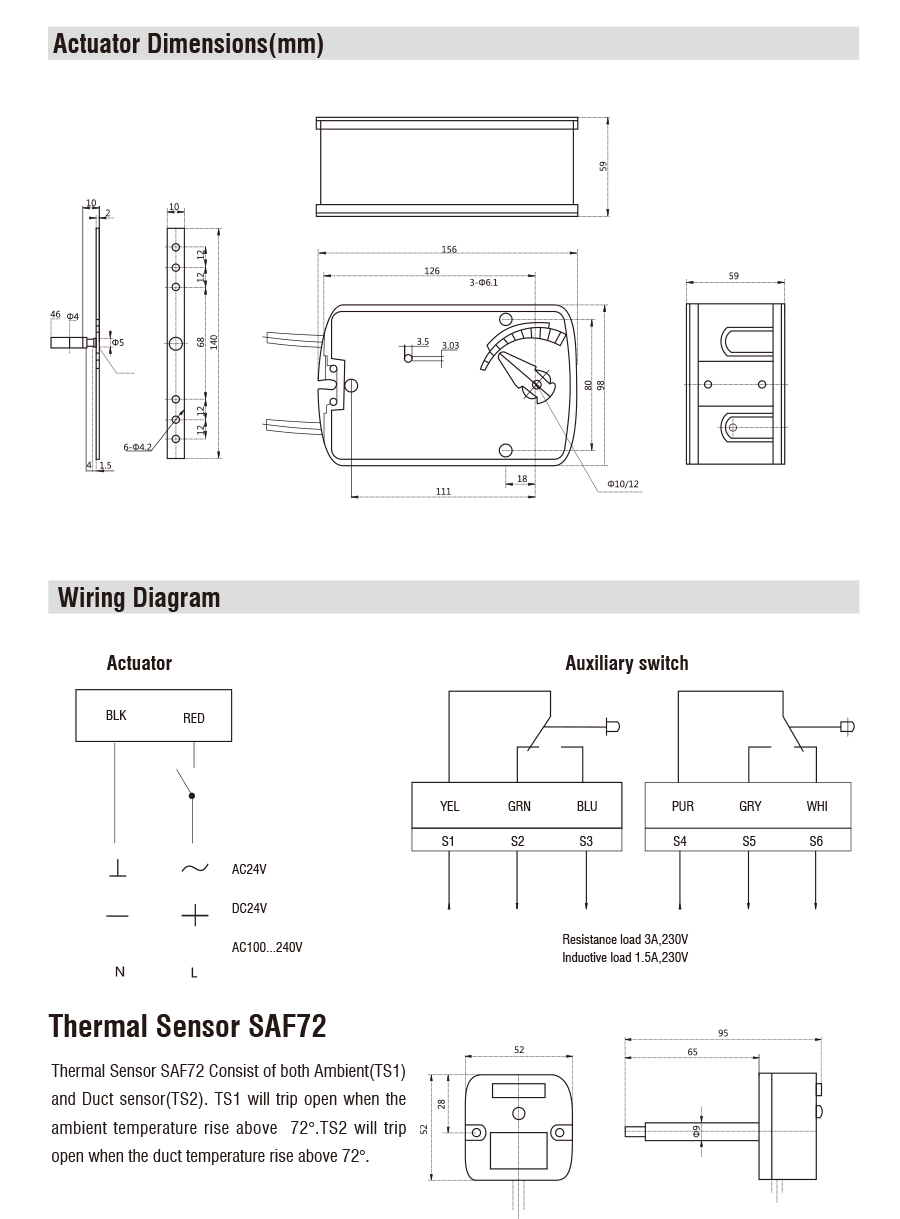

Weight Dimensions | Dimensions(L×W×H) | See "Dimensions" |
Shaft length | ＞ 90mm | |
Weight | ＜2.0kg |
